rincian produk

Rumah Produk

12×40W LED RGBW 4in1 Pixel Control Moving Head Light with 540° Pan and 270° Tilt for Stage and Event Lighting

Nama merek:	Wincode Optronics
Moq:	2
harga:	$345-355

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Tegangan input:

AC 90-240v, 50/60hz

Konsumsi daya:

600W

Suhu warna:

2800K-8500K

Sudut balok:

4.5-45Degree

Rentang dimmer:

0-100%

Frekuensi strobo:

0 ~ 20Hz

Mode kontrol:

DMX512, RDM

Rentang pan:

540°

Rentang kemiringan:

270°

Resolusi Geser/Miring:

16 bit

Berat bersih:

14,5 kg

Berat Kotor:

16kgs

Peringkat IP:

IP20

Kuantitas LED:

12 pcs 40w

Sistem pendingin:

Kipas Kontrol Kecepatan Cerdas

Menyoroti:

RGBW 4in1 Pixel Control Moving Head Light

12×40W LED Stage Light

540° Pan Beam Moving Head Light

Deskripsi produk

12×40W LED RGBW 4in1 Pixel Control Zoom Moving Head Light

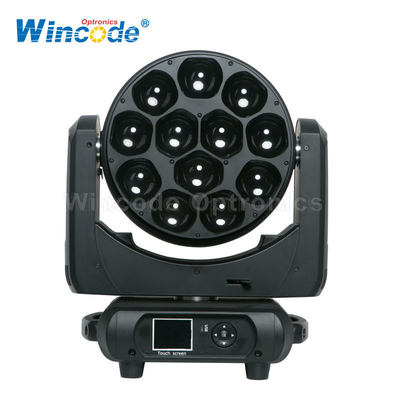

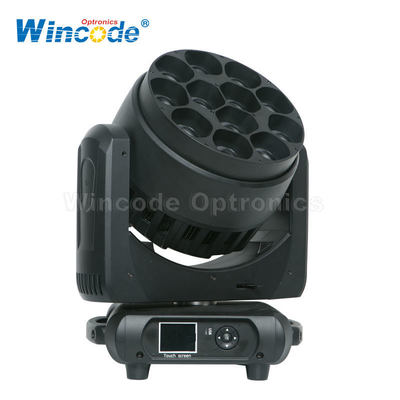

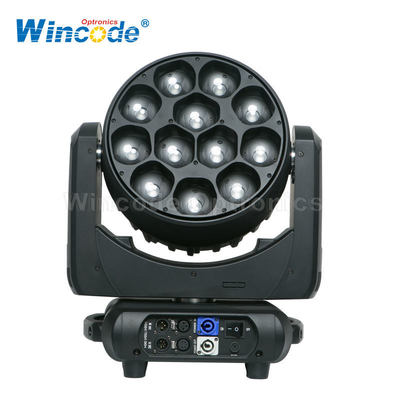

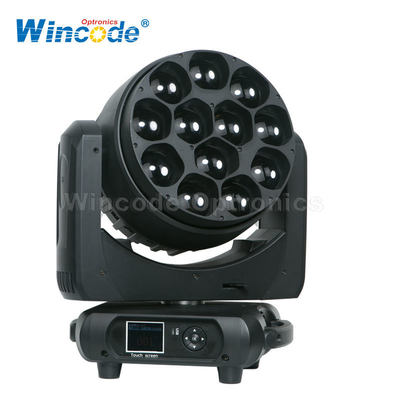

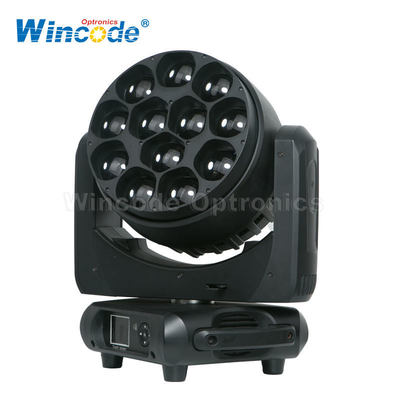

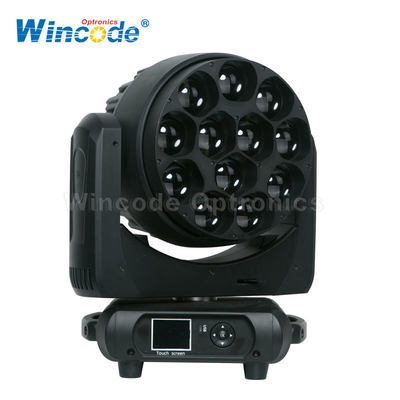

12×40W LED Moving Head Light product image

Product Specifications

Input voltage	100-240 V, 50/60 Hz
Lamp	12pcs 40W Osram 4in1 LEDs
Power consumption	600W
Color temperature	2800K-8500K
Beam angle	4.5-45degree
Dimmer	0-100% dimming
Strobe	0~20HZ
Control mode	RDM, Standard DMX512, Automatic and Master/slave mode
Display	Color LCD display
Housing	Flame-retardant plastic
DMX channels	12/17CH (Overall control), 11CH/17/18CH/58CH (Dot control)
Pan/Tilt	Pan: 540°, Tilt: 270° (16 bit resolution)
Connections	3&5-pin XLR in/out, powerCon in/out
Weight	N.W.: 14.5kgs, G.W.: 16kgs
IP rating	IP20

The WOP-LM4012 12×40W LED Pixel Zoom Moving Head Light features high-power 4-color wash capability with 12 pieces of 40W multi-chip LEDs (Red, Green, Blue, White). It offers a fast 4.5° to 50° beam angle zoom range, advanced cooling systems with temperature monitoring, pixel control, color-pixel zone effects, and linear color temperature presets (2,700-8,000K). Designed for flicker-free operation in TV and film applications with DMX/RDM control and universal power supply (100-240V).

Ideal Applications

Perfect for high-end venues including TV stations, theaters, concert stages, large events, auto shows, and other professional settings with demanding noise requirements.

Product Images

Project Case

Our Advantages

Support ODM, OEM & RTS services
Complete design services from concept to 3D modeling
Professional structure and circuit design
100% quality inspection before shipping
15 years of stage lighting manufacturing experience
Zero complaint record on Alibaba for 15 years

Company Introduction

Guangzhou Wincode Optronics Co., Limited is a professional OEM, ODM, and OBM manufacturer specializing in stage lights, professional lighting, architectural lights, and commercial lighting. Operating under ISO9001 international standards, we market our own "Wincode Optronics" brand globally.

Certifications

Packing & Shipping
